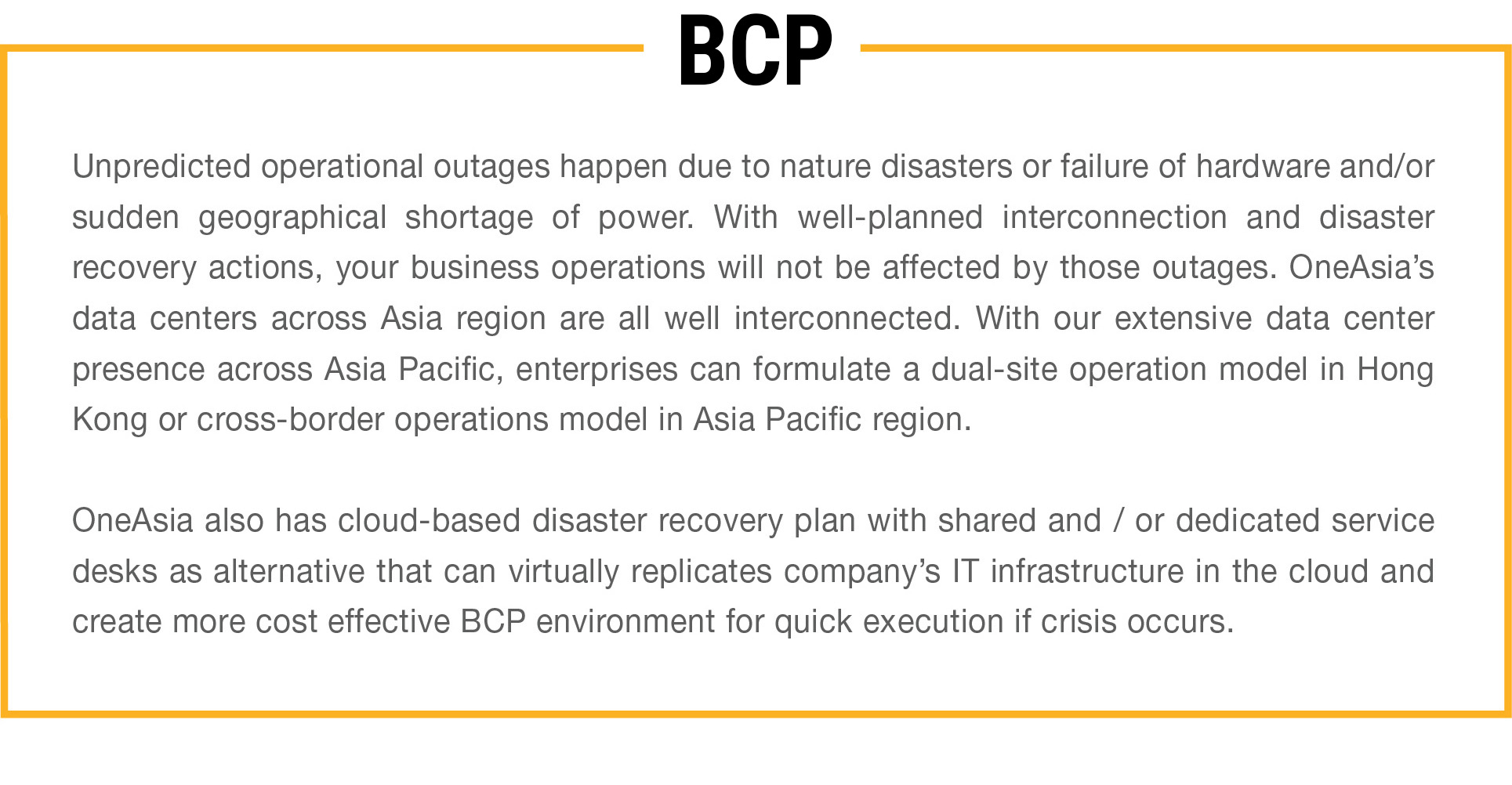

BCP
OUR PRESENCE


0
Years Experience
in Data Center Facility Management
0
+
Data Centers
0
+
Standard Cabinets
Available
0
k+
Sq. m.
of Colocation Space
0
+
Customers
Ranging from SME to Fortune 500 Companies
HONG KONG

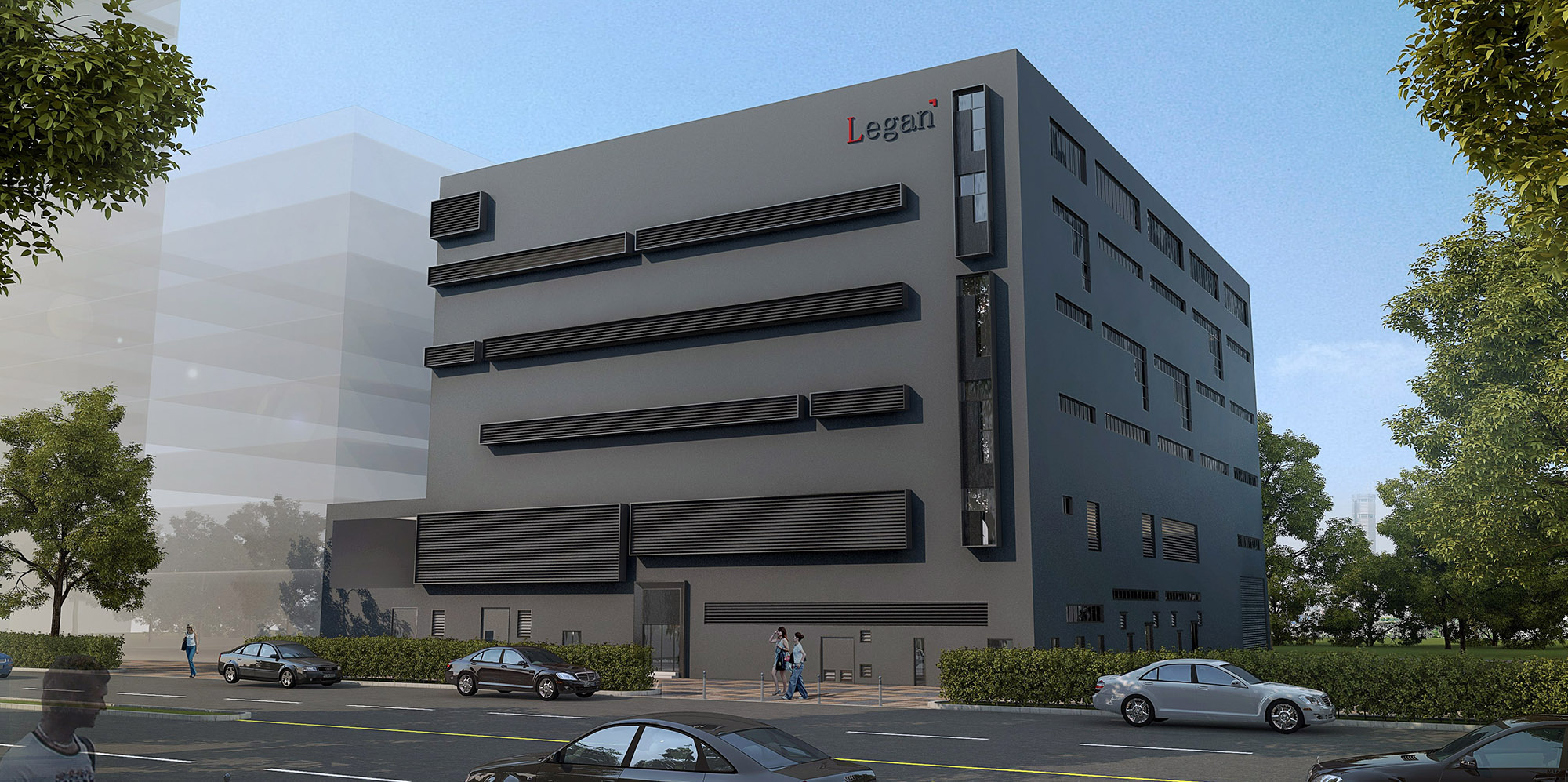

KOWLOON BAY – LEGAN CENTRE

LOCATION
- Located in the heart of Kowloon East Business District
- 10-minute walk from Kowloon Bay MTR Station
- Access to 70+ commercial buildings within 2km radius
- Extensive transport network to main business districts in Hong Kong
COOLING
- Available for individual direction cooling system or chilled water cooling system
- CRAC in N+1 Configuration
- Diverse distributed pipework
CONNECTIVITY
- Diverse routes for carrier neutral connectivity
- Access to multiple Tier 1 international carrier networks
- Two diverse cable entry points
- Connection linking up most of the top data centers in Hong Kong
- Optimized internet solutions for local, China and oversea connectivity
LICENSE
- External Telecommunications Services (ETS)
BUILDING SPECIFICATION
- Purpose built six-storey en-bloc facility
- 14,000 SQM purpose-built data center
- 14kPa of floor loading
- Support 2,000+ standard DC racks
- 4 kVA per rack and upgradable to maximum 10kVA on request
- Tier 3+ standard and upgradable to Tier 4
POWER
- 16MVA +16MVA utility power supply by separated CLP substations
- Diesel generators in N+1 configuration
- UPS design in N+1 or 2N configuration on request
- On-site diesel tanks supporting 24 hour operation
FIRE SUPPRESSION SYSTEM
- Heat and smoke detectors
- FM-200 fire suppression system
- Pre-action dry pipe sprinkler or high sensitivity smoke detection early warning (HSSD) on request
SECURITY
- Multi-layer check points
- Door access control
- Closed-circuit TV with recordings
- 24×7 On-site security with round-the-clock rounds
COMPLIANCE
- ISO/IEC 20000-1:2018 – I.T. Service Management System
- ISO 14001:2015 – Environmental Management Systems
- ISO 9001:2015 – Quality Management Systems
- SO/IEC 27001:2013 – Information Security Management Systems
MONITORING
- 7×24 NOC monitoring all registered infrastructure devices
- 24 hours a day, 7 days a week
- DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
- iMon365 allowing different network components to be closely monitored

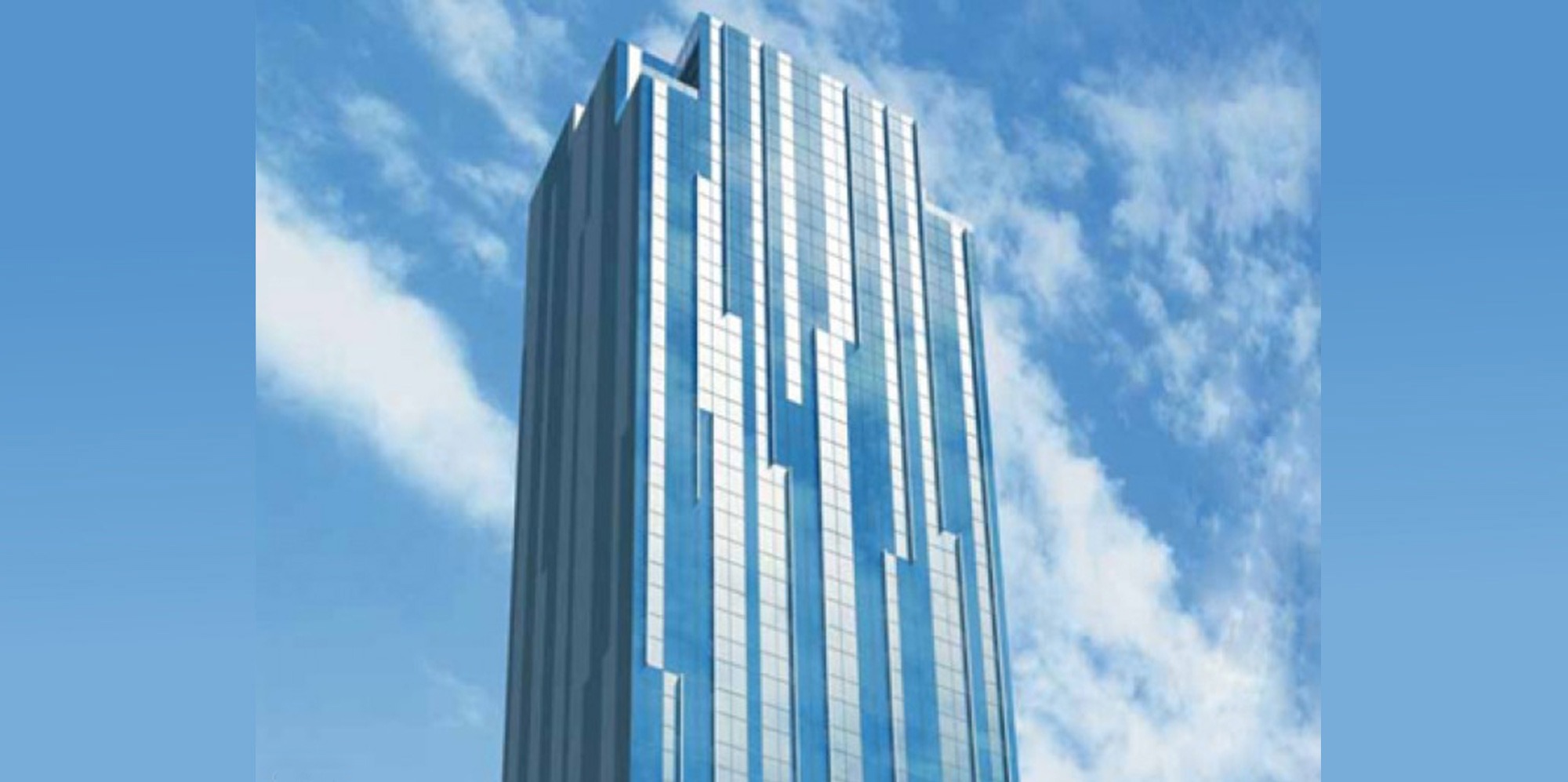

CHAI WAN – E-TRADE PLAZA

LOCATION
- Located in Island Eastern Corridor Expressway
- 3-minute walk from Chai Wan MTR Station
POWER
- Dual transformers & dual supply path to the data center
- UPS in N+1 configuration
- Genset in N+1 configuration
- On-site diesel tanks supporting 8 hours
FIRE SUPPRESSION SYSTEM
- FM-200 fire suppression system
- Smoke and thermal detectors
CONNECTIVITY
- Carrier Neutral
- Well connected with PCCW, HGC, Wharf T&T, Town gas and HK Broadband
- Dedicated telecommunication risers
- Building with dual lead-in
MONITORING
- 7×24 NOC monitoring all registered infrastructure devices
- 24 hours a day, 7 days a week
- DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
- iMon365 allowing different network components to be closely monitored
BUILDING SPECIFICATION
- 3,000 SQM BCP & data center
- Support 200+ shared and / or dedicated service desks plus100+ standard racks
- Tier 3+ standard
COOLING
- Air-cooled CRAC unit in N+1 redundant configuration
- Auto-restart capability after power failure
- Energy saving facture in all CRAC units
SECURITY
- Keyless proximity card access system
- CCTV monitoring and DVR recording of all main exits
- 24×7 on-site security guards
- 3-month CCTV recording retention
COMPLIANCE
- ISO/IEC 20000-1:2018 – I.T. Service Management System
- ISO 14001:2015 – Environmental Management Systems
- ISO 9001:2015 – Quality Management Systems
- ISO/IEC 27001:2013 – Information Security Management Systems
LICENSE
- External Telecommunications Services (ETS)
CHINA

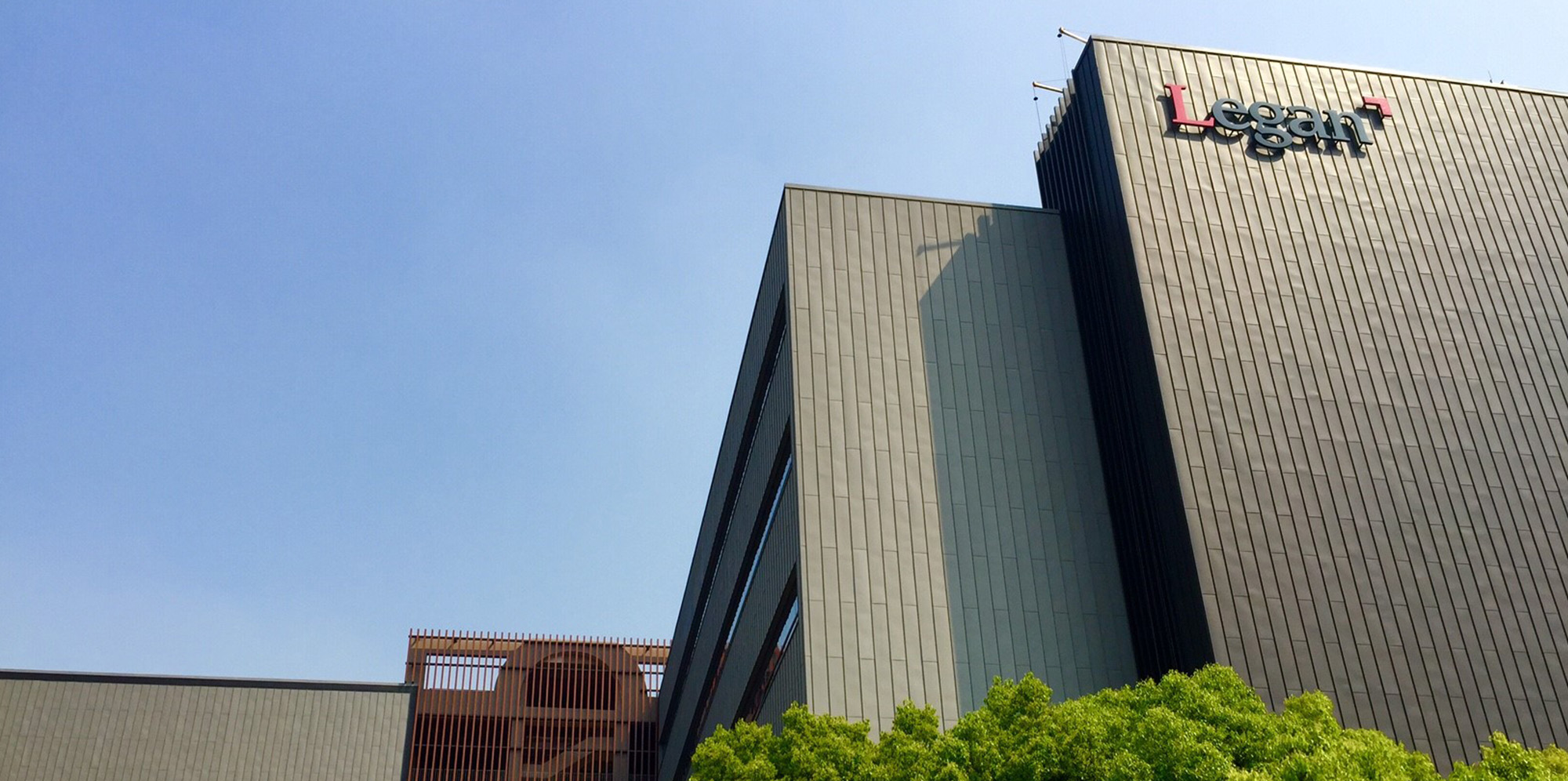

SHANGHAI – WaiGaoQiao DATA CENTER

LOCATION
- Located in the northeast of Shanghai Pudong Waigaoqiao Free Trade Zone area
- 22.3 kilometers from Lujiazui financial center
- 36.2 kilometers from Pudong International Airport
- 44.3 kilometers from Hongqiao International Airport
- Extensive transportation network connecting the FTZ data center to major urban areas and the surrounding cities
POWER
- 20 MVA + 20 MVA utility power supply from dual city power stations
- Diesel generators in N+1 configuration
- UPS design in N+1 or 2N configuration on request
- On-site fuel tank supporting 24 hours operation
- PUE achieved up to 1.5
FIRE SUPPRESSION SYSTEM
- Heat and smoke detectors
- FM-200 fire suppression system
- Inert gas suppression system
- Pre-action dry pipe sprinkler or high sensitivity smoke detection early warning (HSSD) on request
CONNECTIVITY
- Carrier neutral
- China Telecom and China Unicom Internet Access
- Multi-homed BGP Internet Access congestion-free international gateway
- Fiber network covering over 80% of commercial area in Shanghai
- Connections linking up most of the top data centers in Shanghai
- Various type of network services inclusive of SDH, MSTP, Ethernet and Wavelength
- Optimized Internet Solution for local and overseas connectivity
LICENSE
- Type II Telecom Infrastructure Services – Domestic Fixed
- Network Data Transmission
- Type I Telecom Value-Added Services – Domestic Internet VPN
- Type I Telecom Value-Added Services – Internet Data Center
- Type II Telecom Value-Added Services – Internet Access Service
- International Value-Added Network Services (IVANS) include Internet Access Service
- Class A of GB 50174-2008
- Class 4 of Security Protection of Computer Information System (Physical Security) from The Ministry of Public Security of PRC
BUILDING SPECIFICATION
- Purpose built six-storey en-bloc facility
- 10 kPa of floor loading
- Own & operate 280,000 SQFT (26,000 SQM) data center
- Support 6,000+ standard DC racks
- Average 3.5kVA per rack and upgradable to maximum 8kVA on request
- Tier 3+ standard and upgradable to Tier 4
COOLING
- Available for individual direction cooling system or chilled
- Water cooling System
- CRAC in N+1 configuration
- Diverse distributed pipework
SECURITY
- Security booth with 24×7 guards stationed at main gate of DC campus
- Registration Lobby protected with mantrap
- Entrance of hosting area secured by electro-mechanical lock and controlled proximity reader
- Enhanced with two-authentication (with operational bio-metric) for mission critical area or customers’private cage / suite
COMPLIANCE
- ISO/IEC 20000-1:2018 – I.T. Service Management System
- ISO 14001:2015 Environmental Management Systems
- ISO 9001:2015 Quality Management Systems
- SO/IEC 27001:2013 – Information Security Management Systems
MONITORING
- 7×24 NOC monitoring all registered infrastructure devices 24 hours a day, 7 days a week
- DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
- iMon365 allowing different network components to be closely monitored

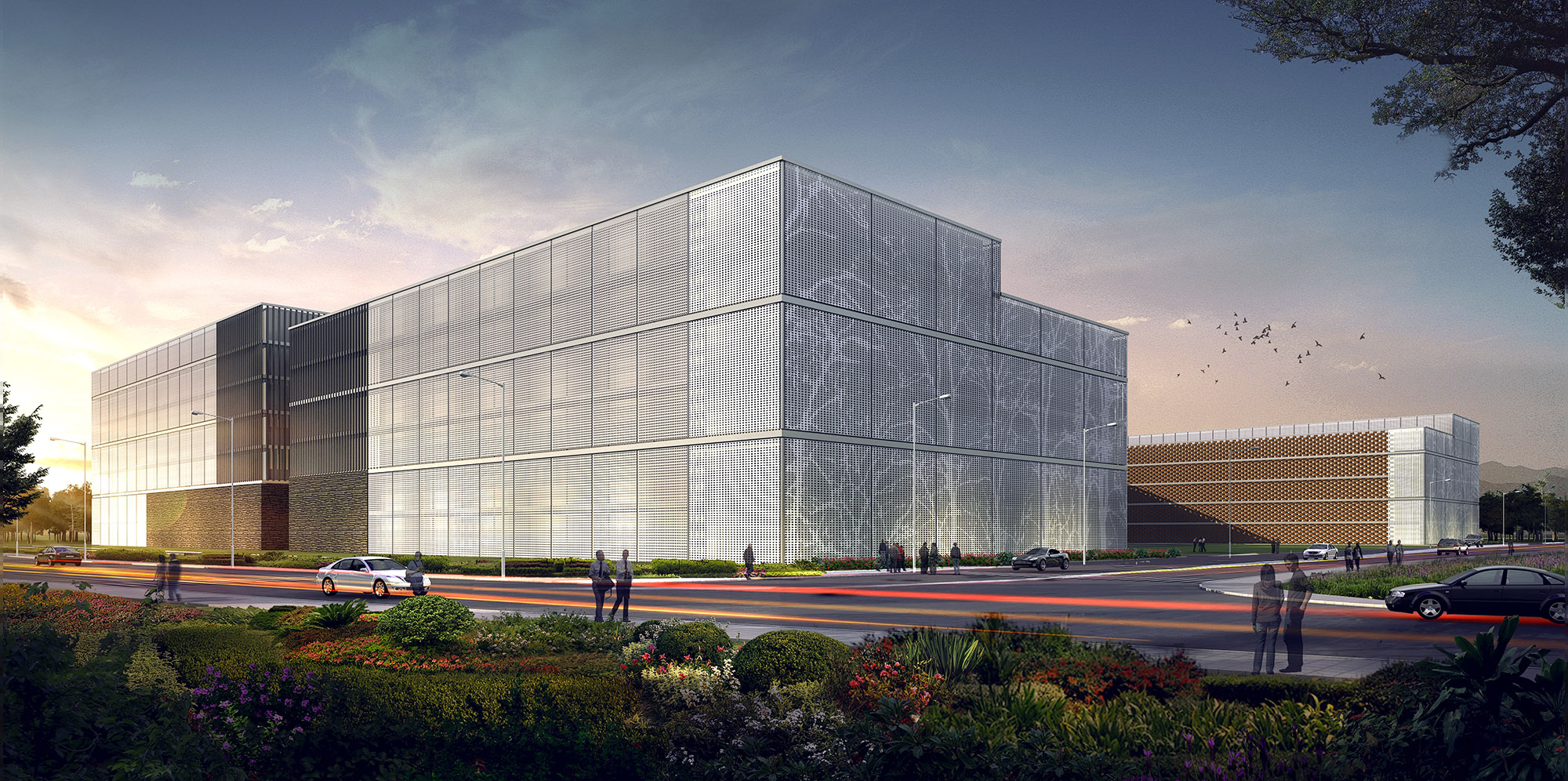

JIANGSU – NanTong DATA CENTER

LOCATION
- Located in Northwestern side of Shanghai
- Situated at Nantong International Data Center Zone
- 30 minutes travel time from Shanghai by High Speed Railway ready in 2018
- Lay on “One Hour within-reach Economic Circle” with Shanghai-Hangzhou shuttle and Shanghai-Ningbo shuttle
- 100 Kilometers from Hongqiao Airport
- 150 Kilometers from Pudong
- 60% reduction in operation cost compared to Shanghai
POWER
- Mains availability of the Data Center Campus Area covering 150 MVA
- Dual city power delivered to campus
- On-site fuel tank supporting 24 hour operation
- PUE achieved up to 1.4
FIRE SUPPRESSION SYSTEM
- Heat and smoke detectors
- FM-200 fire suppression system
- Inert gas suppression system
- Pre-action dry pipe sprinkler or high sensitivity smoke detection early warning (HSSD) on request
COMPLIANCE
- ISO/IEC 20000-1:2018 – I.T. Service Management System
- ISO 14001:2015 Environmental Management Systems
- ISO 9001:2015 Quality Management Systems
- SO/IEC 27001:2013 – Information Security Management Systems
BUILDING SPECIFICATION
- DC campus comprised of 5 six-storey en-bloc buildings
- Own & operate 1,200,000+ SQFT (120,000 SQM) purpose-built data center
- Support 20,000+ standard DC racks
- Tier 3+ standard and upgradable to Tier 4
COOLING
- Available for individual direction cooling system or chilled Water cooling System
- Diverse Distributed pipework
- CRAC in N+1 configuration
SECURITY
- Security booth with 24×7 guards stationed at main gate of DC campus
- Registration Lobby protected with mantrap
- Entrance of hosting area secured by electro-mechanical lock and controlled proximity reader
- Enhanced with two-authentication (with operational bio-metric) for mission critical area or customers’ private cage / suite
CONNECTIVITY
- Carrier neutral
- China Telecom and China Unicom Internet Access
- Multi-homed BGP Internet Access
- Congestion-free international gateway
- Various type of network services inclusive of SDH, MSTP, Ethernet and Wavelength
- Optimized Internet Solution for local and overseas connectivity
- Direct Access to Shanghai’s Internet Gateway with dark fiber with bandwidth up to 3,000GB
LICENSE
- Type II Telecom Infrastructure Services – Domestic Fixed Network Data Transmission
- Type I Telecom Value-Added Services – Domestic Internet VPN
- Type I Telecom Value-Added Services – Internet Data Center
- Type II Telecom Value-Added Services – Internet Access Service
- International Value-Added Network Services (IVANS) (include Internet Access Service)
MONITORING
- 7×24 NOC monitoring all registered infrastructure devices
- 24 hours a day, 7 days a week
- DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
- iMon365 allowing different network components to be closely monitored
KEY BENEFITS

Fiber network outreached to over 90% of datacenters in Greater China, provisioning service within our footprint will only take within a week
Carrier-neutral network connectivity for providing the best connectivity to enterprise


On Demand Usage Model provides a flexible kick start on modular data center
Direct connectivity with prominent cloud providers for Cloud Exchange

COLOCATION


KEY FEATURES

ISO
Compliance
ISO 20000:2018
I.T. Service Management System
ISO 14001:2015
Environmental Management Systems
ISO 9001:2015
Quality Management Systems
ISO/IEC 27001:2013
Information Security Management Systems


Carrier
Neutral
Provide you with fast and secure connectivity to the widest choice of carriers (Fixed & Mobile), ISPs, Internet Exchanges and other network service providers in order to build your communication network


Asia
Interconnection
Provide a seamless data platform with our inter-connected and comprehensive data center coverage across Asia Pacific


7 x 24
Security
Strictly execute access control, 7 x 24 on-site monitoring and daily patrol and CCTV surveillance cameras recording


Managed
Colocation
Dedicated managing your data center requirements and even provide options to manage your servers, firewalls and other equipment and help you create greater efficiencies


Data Center
Relocation
Experienced with all types of moves nationwide – from enterprise-size relocations to those that are smaller in scale in order to minimize the risk, meet the deadlines and reduce the relocation costs

KEY BENEFITS

Flexibility in scaling up your requirements and technology matching your growing business needs
Excellent connectivity via our fully redundant network connections to various locations in Asia and Mainland China


High degree of control in environmental facilities
MANAGED SERVICES


KEY FEATURES

Smart Hand
Support
Provide remote management, custom installations, and equipment troubleshooting assistance 24 hours a day,7 days a week, 365 days a year


Professional
Supports
Highly trained and experienced technicians specializing in data migration, monitoring and security


Management &
Monitoring
Provide around-the-clock monitoring, regular preventive maintenance, audit, staff training and assessment


Business Continuity
Plan with DR and
back up services
Offer end-to-end methods for protecting against disaster and ensuring that the enterprise continues to function

KEY BENEFITS

Leave IT complexity with our engineers
Rapid & flexible fulfillment & provisioning


Allow you to focus on your core business
BCP


KEY FEATURES

Geographical
Flexibility
Numerous strategically located business continuity site available


Best-in-class
Facility
Possess the self-owned UPS and generators, ready-to-use service desks, office facilities and equipment with the same security levels as data center


One-stop Shop
Services
Provide a full suite of service ranging from consultation, planning to implementation


Monitoring and
Management
Provide 7 x 24 monitoring and operation supports to guarantee fast data recovery

KEY BENEFITS

Identify potential gaps in the critical business requirements and IT’s ability
Eradicate business impacts from unexpected operational outages
